Model 235SS Spectrometer

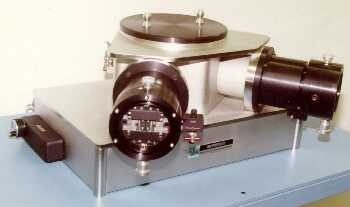

Model 235SS (T), Basic table type, half meter, Seya- Namioka vacuum UV scanning monochromator consisting of: Stainless Steel vacuum chamber; manual drive; wavelength counter accurate to ±1Å; kinematically mounted grating holder and bracket. Stepper motor & drive optional. Completely assembled and factory tested. Less vacuum pumping system and instrument support table.

Specifications

Focal Length 0.5 meter concave grating

Angle between entrance and exit beams 70.25 degrees

f / No. 11.4

Wavelength Range <30 nm to 1200 nm

Wavelength Accuracy +/- 0.10 nm (with 1200 G/mm grating)

Wavelength Reproducibility +/- 0.005 nm (with 1200 G/mm grating)

Grating Ruled Area 30mm x 50 mm

Performance

Grating (G/mm) 1200 600 300

Wavelength Range From <30 to 300 600 1200

First Order Littrow Blaze (nm) 70 150 550

150

200

Resolution (nm) 0.05 0.1 0.2

Dispersion (nm/mm) 1.66 3.33 6.66

Wavelength Range at Focal Plane (nm) 86 172 344
