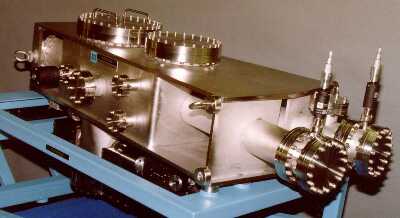

Model 225 Spectrometer

The Model 225 NOVA VUV Monochromator can be used in any attitude and has with the exception of the grating table all moving parts external. It features 1.0 meter focal length and the normal incidence design eliminates all other optics except the grating in use. With the proper gratings selected it covers the wavelength range between 30 and 1200 nm. It offers horizontal aperture ratio of f /10.4 with a 56 x 96 mm wide grating. A 1200 G/mm grating provides an accuracy of ± 0.1 nm. Focusing is external and the external precision sine drive scan mechanism is easily connected to an optional stepper drive. The unit has no internal ribbing and the internally welded chamber is made of austenitic stainless steel. The two standard slit tubes are equipped with bilaterally adjustable slit assemblies with isolation valve, air inlet and roughing valve.

Optionally, the unit can be equipped with a dual in vacuo indexable turret type grating holder that will hold two selected gratings.

The basic unit requires selection and ordering of grating(s) and holder(s), stepping drive system, pumping system and support table.

If additional lateral slit tubes are ordered, additional entrance and exit slits and folding mirrors should also be selected.

Specifications

Focal Length 1.0 meter concave grating optical mount

Angle between entrance and exit beams 15 degrees

f / No. 10.4

Wavelength Range <30 nm to 1200 nm

Wavelength Accuracy +/- 0.10 nm (with 1200 G/mm grating)

Wavelength Reproducibility +/- 0.005 nm (with 1200 G/mm grating)

Grating Ruled Area 56 mm x 96 mm

Model 903 Film Attachment Accepts 35 mm film cut 52 mm long

Performance

Grating (G/mm) 3600 2400 1800 1200 600 300

Wavelength Range From <30 to 100 150 200 300 600 1200

First Order Littrow Blaze (nm) holographic 80 holographic 45 90 700

holographic 80 150

120 200

150 500

250

holographic

Resolution (nm) 0.005 0.008 0.01 0.015 0.03 0.06

Dispersion (nm/mm) 0.28 0.42 0.56 0.83 1.66 3.33

Wavelength Range at Focal Plane (nm) 14.2 21.3 28.3 42.5 85.0 170
