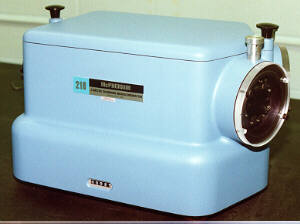

Model 218 Spectrometer

Model 218 - 11kb

Model 218, 0.3 Meter, Plane Grating Scanning Monochromator, aluminum mirrors (U.S. Pat. 3409374), effective aperture f/5.3, consisting of a vacuum tight aluminum housing, focusing mirror and mount, collimating mirror and mount. Bilaterally adjustable entrance and exit slit assemblies. "Snap-In" grating holder (U.S. Pat. 3433557) to accept 50 mm. x 50 mm. gratings. All optics have high reflectance aluminum coating. MgF2 overcoat is suggested for use in the vacuum ultraviolet. Wavelength counter accurate to ±l Å Completely assembled and factory adjusted.

Specifications

Focal Length0.30 meter
Angle Between Entrance and Exit Beams44 degrees
f / No.5.3
Wavelength Range105 mm to 60 um
Wavelength Accuracy+/- 0.1 nm (with 1200 G/mm grating)
Wavelength Reproducibility+/- 0.005 nm (with 1200 G/mm grating)
Grating Ruled Area50 mm x 50 mm
Camera Attachment Accepts35 mm film cut 16 mm long

Performance

Grating (G/mm) (others available)
2400
1200
600
300
150
75
50
20
Wavelength Range from 105 nm to
500 nm
1.0 um
2.0 um
4.0 um
8.0 um
16.0 um
24.0 um
60.0 um
First Order Littrow Blaze
150 nm
150 nm
150 nm
1.0 um
2.0 um
8.0 um
18.0 um
45.0 um
300 nm
200 nm
300 nm
2.0 um
6.0 um
12.0 um
300 nm
500 nm
3.0 um
500 nm
1.0 um
750 nm
1.6 um
Resolution (nm) at 313.3nm
0.03
0.06
0.12
0.24
0.48
0.96
1.44
3.6
Dispersion (nm/mm)
1.3
2.6
5.3
10.6
21.2
42.4
63.6
159
Wavelength Range at Focal Plane (nm)
20
40
80
160
320
640
960
2400
