Model 2061BV Spectrometer

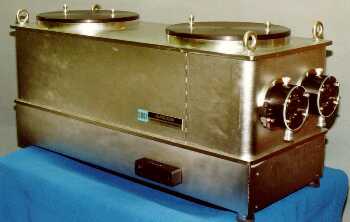

Model 2061V Vacuum spectrometer is a 1.0 meter fl, f/7.0 (nominal), features patented "Snap-In" Grating Assembly (US Pat. 3433557), vacuum tight housing, focusing and collimating mirrors and mounts, optics MgF₂ coated, provisions for easy installation of spectrograph attachments and microchannel plate diode array and other accessories. Manual drive, including a wavelength counter accurate to ±1Å. Grating holder to accept plane "Snap-In" 110 x 110 or 120 x 140 mm gratings. Instrument completely assembled and factory aligned, and if so ordered, with selected optional accessories installed.

Specifications

Focal Length 1.0 meter

Angle between entrance and exit beams 0, 90, or 180 degrees

f / No. 7.0

Wavelength Range 115 nm to 78 um

Grating Size 120 mm x 140 mm

Wavelength Accuracy (with 1200 G/mm grating) +/- 0.05 nm

Wavelength Reproducibility (with 1200 G/mm grating) +/- 0.005 nm

Camera Attachment Accepts 4" x 5" film, polaroid back or MCP/PDA

Performance

Grating (G/mm) (others available) 2400 1800 1200 600 300 150 75 20

Wavelength Range from 185 nm to 650 nm 860 nm 1.3 um 2.6 um 5.2 um 10.4 um 20.8 um 78 um

First Order Littrow Blaze 240 nm holo 250 nm 300 nm 750 nm 1.25 um 2.0 um 45 um

300 nm 300 nm 500 nm 1.0 um 2.5 nm 3.0 nm

holo 500 nm 750 nm 3.0 um 4.0 um 8.0 um

750 nm 1.0 um 4.0 um 6.0 um 10.0 um

1.0 um 1.85 um 8.0 um 12.0 um

Resolution (nm) at 313.1 nm 0.011 0.015 0.023 0.046 0.092 0.184 0.368 1.38

Dispersion (nm/mm) 0.416 0.555 0.833 1.66 3.33 6.66 13.3 49.9

Wavelength Range at Focal Plane nm 20.7 27.7 41.5 83 166 332 664 2490

Theoretical Spectral Bandwidth at 10um exit slit (nm) 0.0042 0.0056 0.0083 0.017 0.033 0.067 0.13 0.5
