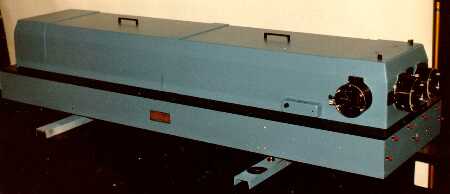

Model 2062 Spectrometer

Model 2062 Two meter Czerny-Turner high resolution scanning monochromator, manual drive with wavelength counter. (Select high resolution Stepper Wavelength Drive System). This monochromator has an effective aperture of f/17.2 and comes entrance complete with the following:

• Bilateral and exit slits, continuously adjustable from 5 to 4000 mm. Height adjustable to 20 mm., includes manual shutter.
• Collimating and focusing mirror assemblies. A1 and MgF2 coated is standard. For I.R. application Au (Gold) coated collimating, focusing mirrors and gratings can be supplied.
• "SNAP-IN" grating holder (US pat. # 3433557) to accept 120 x 140 mm and 110 x 110 mm plane gratings.
• Two grating positions, 0° to 50° and auxiliary 20° for echelle gratings and wavelength range extension.

Specifications

Focal Length	2.0 meter
Angle between entrance and exit beams	0, 90, or 180 degrees
f / No.	14.1 (17.4 with smaller grating)
Wavelength Range	185 nm to 78 um
Grating Size	120mm x 140 mm (or 110 mm x 110 mm)
Camera Attachment Accepts	4" x 5" (102mm x 127 mm) Film/plateholder or Polaroid back
Wavelength Accuracy	+/-0.05 nm (with 1200 G/mm grating)
Wavelength Reproducibility	+/- 0.005 nm (with 1200 G/mm grating)

Performance

Grating (G/mm)	2400	1800	1200	600	300	150	75	20
Wavelength Range from 185 nm to	650 nm	860 nm	1.3 um	2.6 um	5.2 um	10.4 um	20.8 um	78 um
First Order Littrow Blaze	240 nm	holographic	250 nm	300 nm	750 nm	1.25 um	2.0 um	45 um
	300 nm		300 nm	500 nm	1.0 um	2.5 um	3.0 um
	holographic		500 nm	750 nm	3.0 um	4.0 um	8.0 nm
			750 nm	1.0 um	4.0 um	6.0 um	10.0 um
			1.0 um	1.85 um		8.0 um	12.0 um
Resolution (nm) at 313.1 nm	.003/.004	.005/.006	.007/.008	.013/.017	.026/.035	.053/.070	.110/.140	.400/.500
Theoretical Spectral Bandwidth (nm) 109um exit slit	0.0019	0.0026	0.004	0.0082	0.0166	0.0332	0.0665	0.2496
Dispersion (nm/mm)	0.19	0.26	0.4	0.82	1.66	3.32	6.65	24.9
Wavelength Range at Focal Plane (nm)	9.5	13	20	41	83	166	333	1245
