Electron Cyclotron Resonance Heating of Plasma in H-1
M.G. Shats
Plasma Research Laboratory
Research School of Physical Sciences and Engineering The Australian National University CanberraMichael.Shats@anu.edu.au
Outline
Introduction
Electron-cyclotron resonance heating (ECRH) project
has started in collaboration with NIFS (Nagoya, Japan) and IAE (Kyoto University) based on the loan of 200 kW 28 GHz gyrotron and a power supply from Japan.
Attractiveness of the method
The need in the ECRH in H-1 heliac
is dictated by a number of unique features possesed by this plasma production and heating technique.Physics advantages
Technology advantages
Wave propagation and absorption
DISPERSION RELATION
(see M. Bornatici et al. Nucl. Fusion,23 (1983)1153)
In homogeneous magnetized plasma:
Dispersion tensor:
where , (i,j = x,y,z)
d
ij unit tensor, N = ck/w refractive index
Refraction effects
are described by the cold plasma dispersion relation.Dielectric tensor (cold plasma)
where and
.
Two solutions ("-" O-mode, "+" X-mode):
where
The most practically important (for heating) case is perpendicular propagation:
Two types of waves:
Ordinary Mode (O-mode):
(like in unmagnetized case)
Extraordinary Mode (X-mode):
low- and high-density cut-offs:
Cut-offs and resonances for perpendicular launch of the first-harmonic O- and X-mode in tokamak-like configuration with parabolic density profile
(ne(0) > cut-off density)
Approach to inhomogeneous plasma
Geometrical optics (WKB) approximation
l
<< L, 2p/w << TWave electric field is described by
Eikonal approximation: ,
where S(r) is the wave phase (eikonal) and en is a position
.Constant S surfaces are called
geometrical wave fronts.A ray path is defined as trajectory orthogonal to the geometrical wave fronts and is described by the Hamiltonian formalism:
,
where D(r,k,
w) = det {Re[L(r,k,w)]}(
L is a local dispersion tensor)Reflection point coincides with the cut-off point only for a ray propagating along the density gradient
Wave Absorption
Qualitative picture:
1. Parallel propagation (k || B) (X-mode)
[A.G. Litvak et al. Nucl. Fus.17 (1977) 659]
Resonant electrons are directly accelerated in circularly polarized wave, incrementing their perpendicular energy
2. O-mode:
FLe component of the Lorentz force is resonant with the electron gyration. Increases electron perpendicular energy.
[E.V. Suvorov, M.D. Tokman, Plasma Physics, 25 (1983) 723]
Absorption: General Approach
Warm plasma dielectric tensor:
S
ij is a Hermitian tensor (function of electron distribution function),The wave absorption is defined by the anti-Hermitian part of the dielectric tensor:
d
is Dirac function.The absorption coefficient
a is calculated from the energy balance equation as a function ofImportance of relativistic effects
Relativistic effects are important even if
. The resonance condition
,
Doppler broadening of the resonance:
prevails when
(quasi-perpendicular propagation)
Relativistic line width
important when
(oblique propagation)
Energy flux follows the path of the ray and the wave power exponentially decreases along the ray with the rate of
a(s):where
a is absorption coefficient
The optical depth
t of the plasma
Spatial line width
(absorption length)in the inhomogeneous magnetic field:,
where for perpendicular propagation the line width is defined by the relativistic effect:
Absorption coefficients for O- and X- modes
O-mode |
a |
cn |
n=1 |
|
|
n=2 |
|
|
X-mode |
||
n=1 |
|
|
n=2 |
|
´ |
Launching conditions in H-1
mode |
launching |
density |
absorption |
comments |
n
= 1 (B = 1T)
O-mode |
LFS HFS |
0 - nc 0 - nc |
good good |
simple impossible |
X-mode |
LFS HFS |
0 0 - 2 nc |
none very good |
reflection at w+impossible |
n
= 2 (B = 0.5T)
O-mode |
LFS HFS |
0 - nc 0 - nc |
bad bad |
useless useless |
X-mode |
LFS HFS |
0 - 1/2nc 0 - 1/2nc 3/4-3/2nc |
good good good |
Low n, low B impossible impossible |

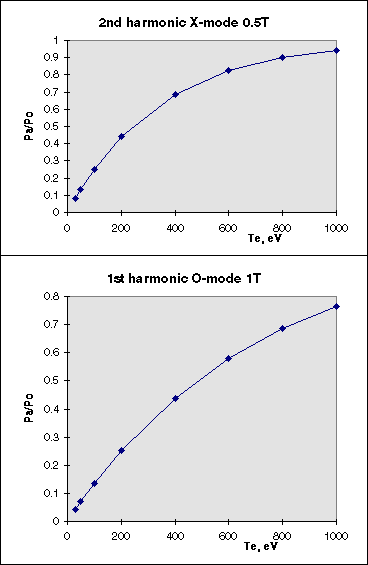

Absorbed power in H-1 vs Te
(n(0)=2´ 1012cm-3)
Physics studies in ECRH plasmas
Realistic: ne £ 1013cm-3, Te » 1 keV, B =1 T
a) Particle orbit effects
- biased limiters
- trapped particle control
b) L-H transition
combined ICRH+ECRH to manipulate radial electric field
c) Estimate of heat transport coefficients
+ Neoclassical theory prediction
requires detailed power balance
2. Divertor studies
only ECRH can provide localized power deposition necessary for these studies
3. Finite b effects - requires high Pheat
4. Fluctuations and turbulence
ECRH is ideally suited for a variety of plasma physics experiments in H-1:
- production of high electron temperature plasma in low-collissionality regime;
- electron temperature profile shaping;
- heat-wave propagation experiments to measure local thermal conductivity of plasma;
- transport studies, including the effects of magnetic islands and island divertor configurations.
At the first stage, ECRH experiment in H-1 will be performed at the second cyclotron harmonic (magnetic field will be 0.5 T) with an extraordinary mode (electric vector of the heating wave is perpendicular to the magnetic field of the machine) launched from a low magnetic field side. Since the single-pass absorption of the power at low densities is not expected to be higher than 20 to 30%, the unabsorbed power will be collected and focussed back into the plasma providing thus higher heating efficiency. An estimate of the plasma parameters achievable with a single gyrotron (based on other stellarator experiments) gives the density above 10^18 m^-3 and the electron temperature in the range of 400 to 800 eV which is more than an order of magnitude higher than at present.
A second stage of ECRH experiment will be a fundamental electron cyclotron harmonic heating with an ordinary mode (electric vector of the heating wave is parallel to the magnetic field of the machine) at the magnetic field of 1 T. This will allow to increase the plasma density by a factor of two and to improve plasma confinement.
A development of the quasi-optical transmission line is under way in collaboration with physicists from Japan. The design relies on the transformation of the output gyrotron mode into a Gaussian beam which is then transported to plasma by a combination of quasi-optical mirrors and corrugated waveguides. Total losses of the microwave power are expected to be lower than 20%.
The construction and test stage of the project is planned for the first half of 1998 with first plasma experiments later in the year.
